Nest Phone Booth [Acoustic Panel with Fabric]
- Description
- Spec sheet
- Dimensions
- Brochure
- 3D models
- Assembly instructions
- Warranty

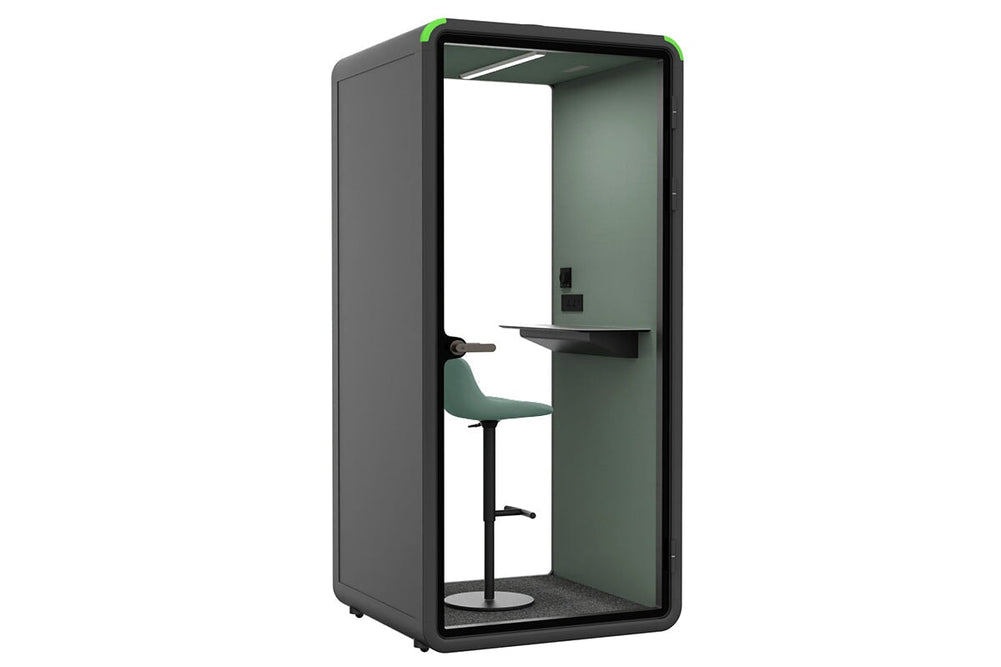

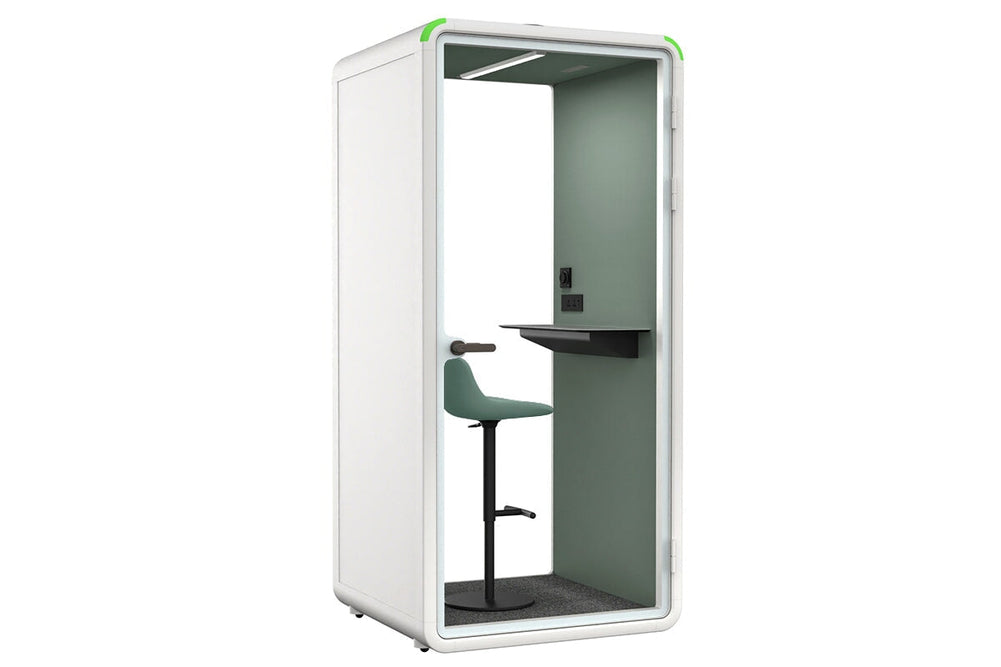

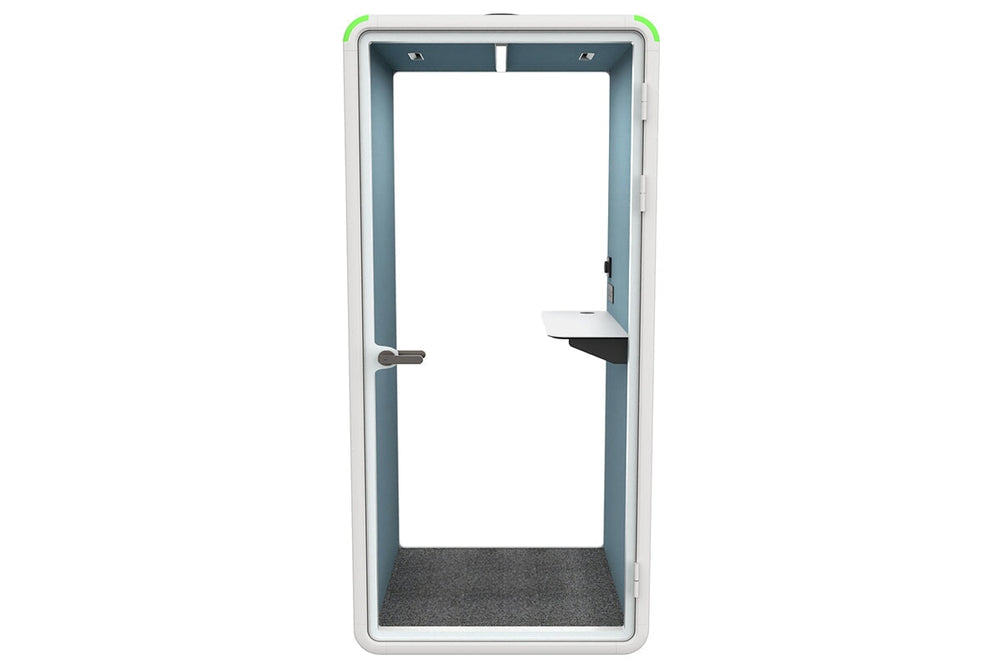

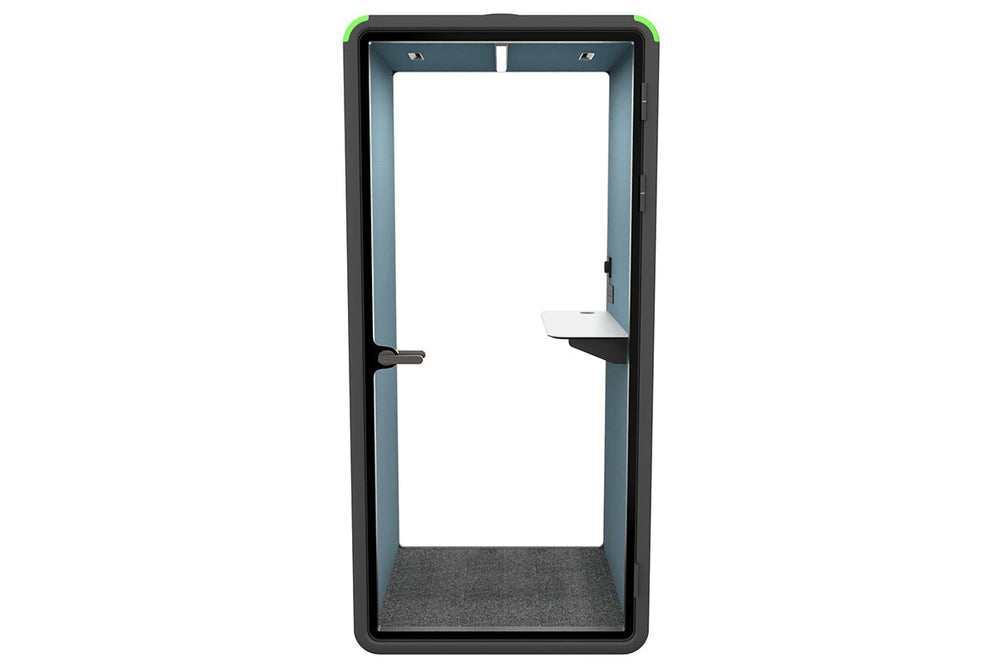

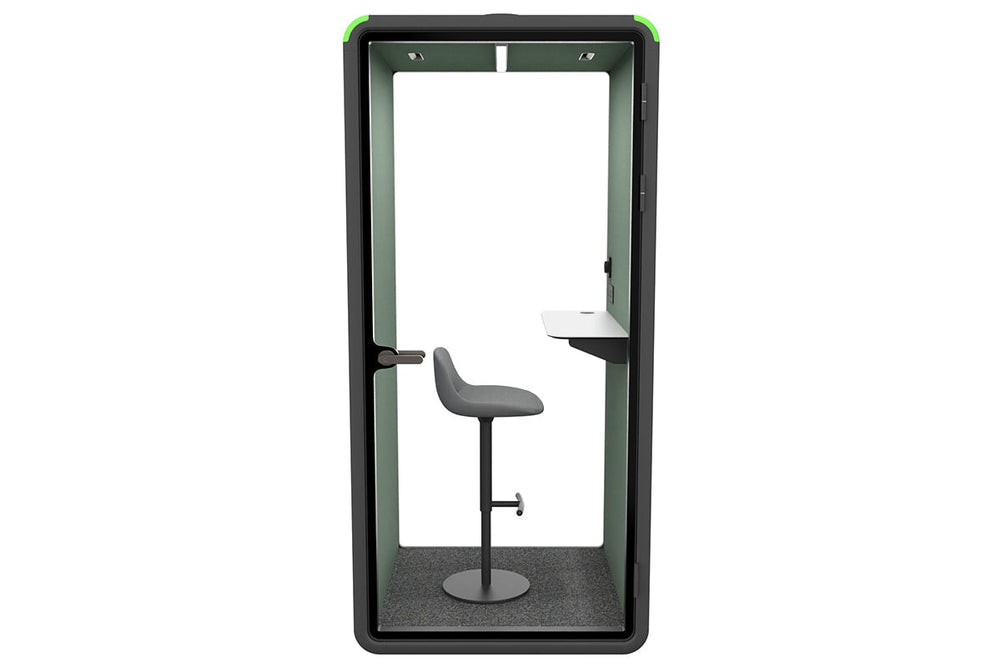

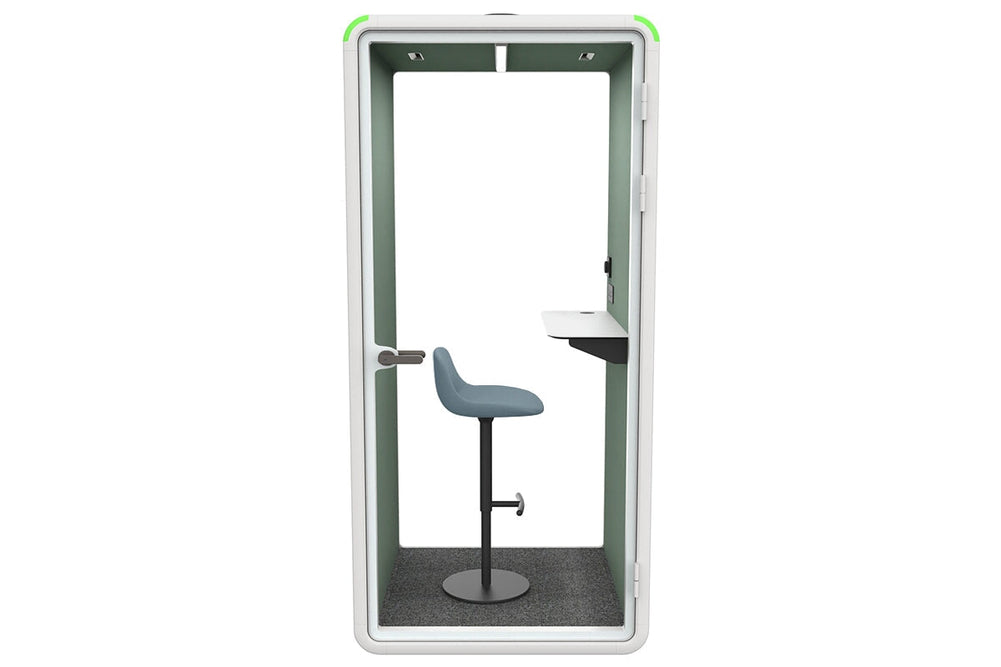

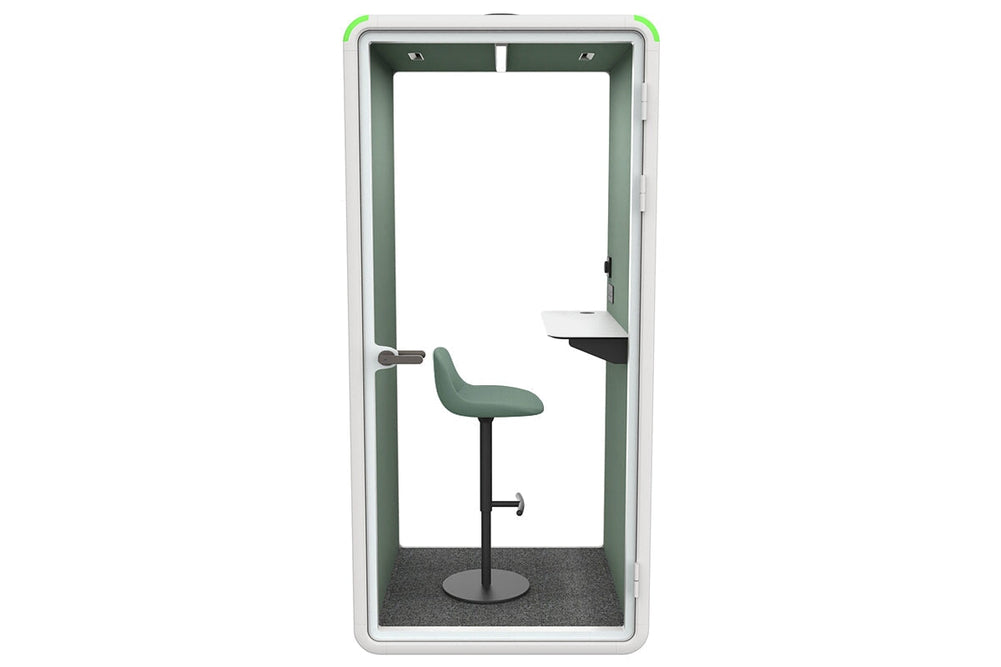

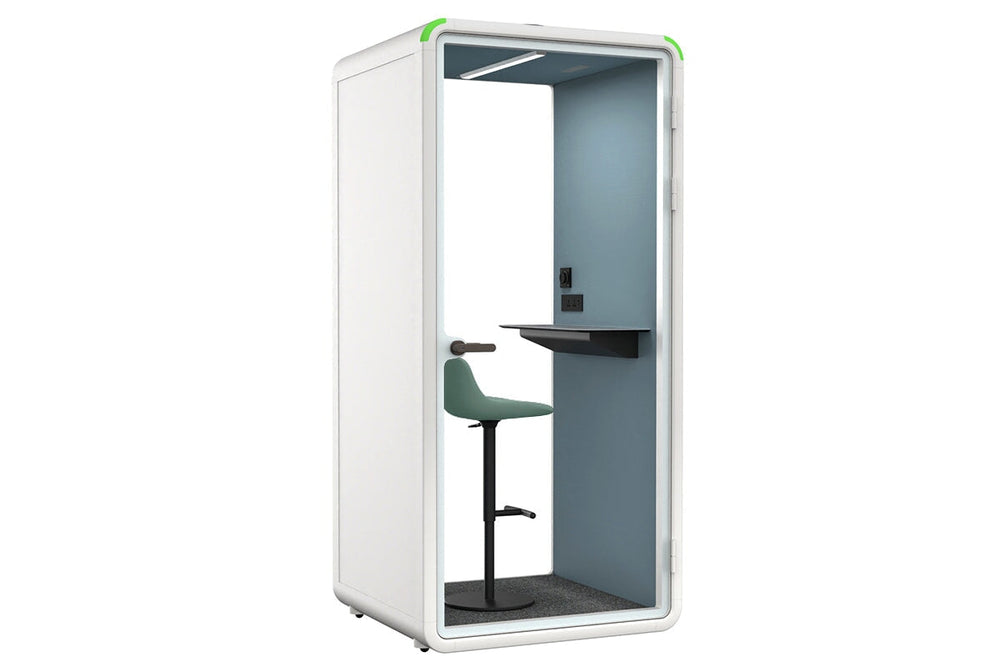

Hello! I'm the Nest Phone Booth, your haven for confidential calls and video conferences. I ensure disturbance-free communication, featuring a dedicated area for a single chair to enhance your focus during crucial meetings. Effortlessly coordinating the wall paneling colors with your internal furniture ensures a chic and harmonious atmosphere for your discussions.
Equipped with dual GPO power outlets (USB and USB-C), a motion sensor, and adjustable fan speed and LED lighting, I have everything you need for a seamless and personalized experience. Experience the perfect blend of functionality and comfort in the Nest Phone Booth, designed to elevate your work and communication.
My moveable design, with a concealed wheel mobility system, makes me portable and versatile. I am easy to install, dismantle, and move, providing you with the flexibility to create your ideal workspace anywhere. I am Green Guard certified, showcasing my commitment to safety, quality, and sustainability.
Please click here to view brochure
Brand
Jasonl
Assembly required
Yes (JasonL trained assemblers)
Height (mm)
2326 (2148 interior)
Width (mm)
1080 (942 interior)
Depth (mm)
1000 (960 interior)
Warranty (years)
5 (main frame) and 2 (electrical devices)
Normal wear and tear is not included
Product weight (kg)
300
Seats (people)
1
Main frame
Aviation aluminium frame and powdercoated matt
Interior panel
Acoustic panel with fabric
Acoustic materials
12mm replaceable PET, flame retardent treatments
Fabric
Polyester green, blue fabric
Carpet & floor seal
Anti static and stain resistant low loop pile carpet

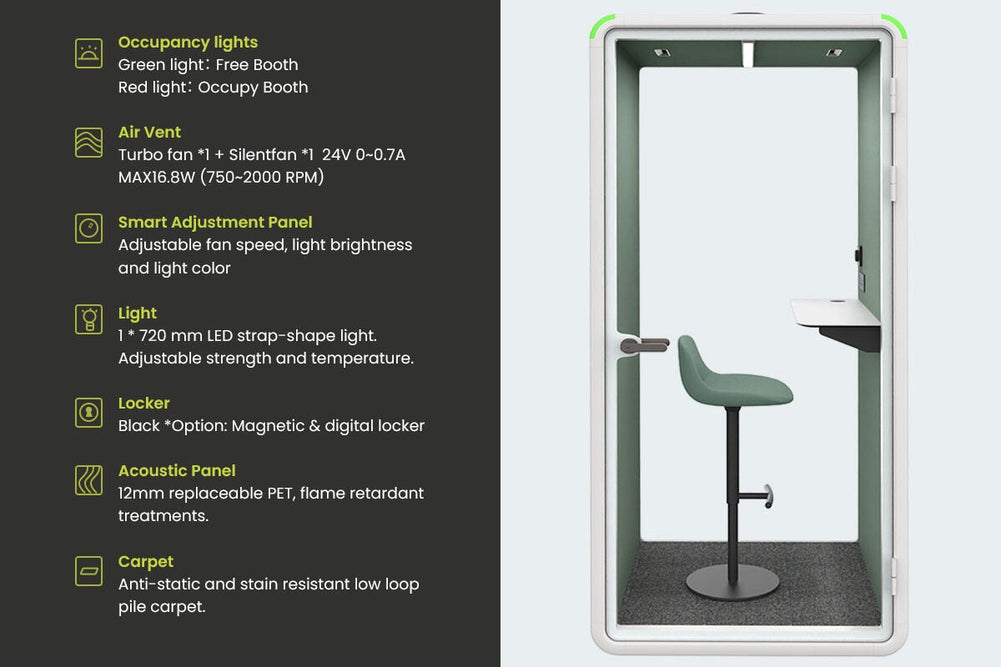

Ventilation
Turbo fan*1 + silent fab*1
24V 0-0.7A MAX16.8W
Power and data
Power: 110V-220V, 50-60Hz, 2 GPO
Socket and motion sensor (24V motion sensor)
220V/10V integrated socket Usb A + Usb C
Wall thickness (mm)
45
Door
Black lock with magnet
Door handle
Black
Glass panel
5 + 5mm double - layer laminated glass
Edge with silk screen printing
Furniture
Straight rectangular table top W820mm x D300mm x H12mm and top height 1050mm
12mm white compact laminate with black sharknose edge
Lightings
1*720mm LED strap-shape light
Adjustable strength and tempature
Motion sensor
Included
Smart adjustment panel
Adjustable fan speed, light brightness and light colour

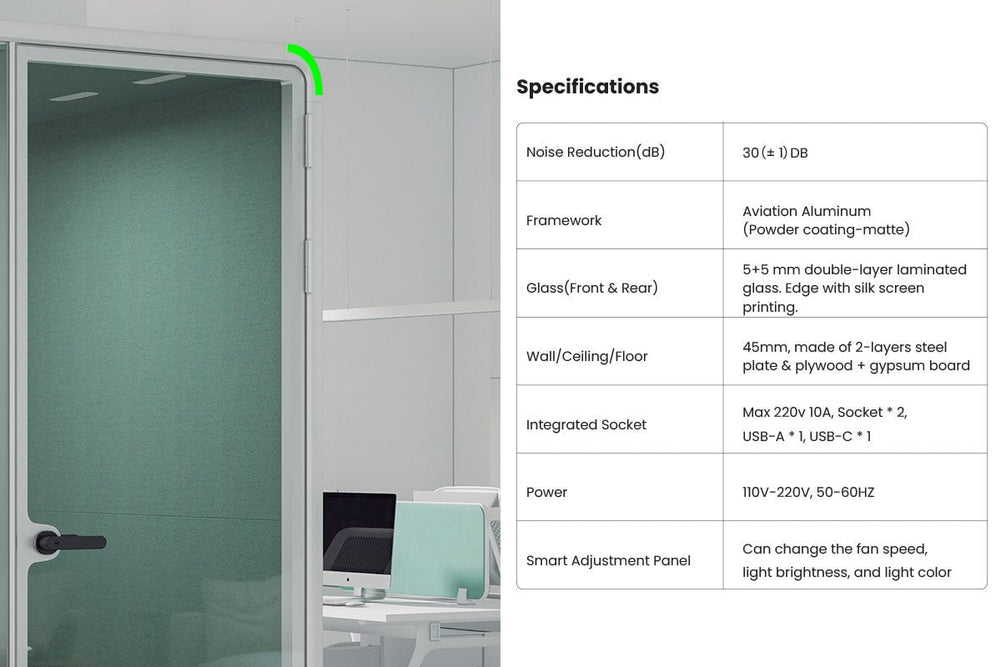

Acoustic sound transmission Class (STC)
29 db
Noise reduction (DB)
30(ñ 1)DB
Airflow
153.216 m3/h
Power cable
3 pin plug
Occupancy indicator
Yes. This shows green when the booth is free and red when the booth is occupied
Use
Suitable for indoor
This product includes
Table top
This product does not include
TV, stool
Optional
Pneumatic adjustable stool
Height (mm)
2326 (2148 interior)
Width (mm)
1080 (942 interior)
Depth (mm)
1000 (960 interior)
Wall thickness (mm)
45
A
1080 mm
B
1000 mm
C
2326 mm
Brochures
Revit (.rfa)
Sketchup (.skp)
Assembly instructions
Notes
- Pre-drill pattern provided
- Allen key set provided
- 2 persons required for installation
5 Year Warranty
This range offer customizable configurations for single desk, multi-person workstations, boardroom setups, and more
This Product is guaranteed for a period of five year against faulty workmanship and/or raw materials for normal office use - i.e. 8 working hours per day. For more info please call 1300-527-665 or email
customerservice@jasonlcomau.
A
1080 mm
B
1000 mm
C
2326 mm
27868748
NSW
1. Pick-up at 2A/149 McCredie Road Smithfield, NSW 2164.
27868748
Availabilty:
true
Assembly required
Yes (JasonL trained assemblers)
Yes
Yes
Height (mm)
2326 (2148 interior)
1230
1230
Width (mm)
1080 (942 interior)
2130
2190
Depth (mm)
1000 (960 interior)
1450
2320
Warranty (years)
5 (main frame) and 2 (electrical devices)
Normal wear and tear is not included
Normal wear and tear is not included
5
5
Product weight (kg)
300
129
195
Seats (people)
1
6
6
Main frame
Aviation aluminium frame and powdercoated matt
Interior panel
Acoustic panel with fabric
Acoustic materials
12mm replaceable PET, flame retardent treatments
Fabric
Polyester green, blue fabric
Carpet & floor seal
Anti static and stain resistant low loop pile carpet
Ventilation
Turbo fan*1 + silent fab*1
24V 0-0.7A MAX16.8W
24V 0-0.7A MAX16.8W
Power and data
Power: 110V-220V, 50-60Hz, 2 GPO
Socket and motion sensor (24V motion sensor)
220V/10V integrated socket Usb A + Usb C
Socket and motion sensor (24V motion sensor)
220V/10V integrated socket Usb A + Usb C
Wall thickness (mm)
45
Door
Black lock with magnet
Door handle
Black
Glass panel
5 + 5mm double - layer laminated glass
Edge with silk screen printing
Edge with silk screen printing
Furniture
Straight rectangular table top W820mm x D300mm x H12mm and top height 1050mm
12mm white compact laminate with black sharknose edge
12mm white compact laminate with black sharknose edge
Lightings
1*720mm LED strap-shape light
Adjustable strength and tempature
Adjustable strength and tempature
Motion sensor
Included
Smart adjustment panel
Adjustable fan speed, light brightness and light colour
Acoustic sound transmission Class (STC)
29 db
Noise reduction (DB)
30(± 1)DB
Airflow
153.216 m3/h
Power cable
3 pin plug
Occupancy indicator
Yes. This shows green when the booth is free and red when the booth is occupied
Use
Suitable for indoor
Suitable for indoor
Suitable for indoor
This product includes
Table top
This product does not include
TV, stool
Optional
Pneumatic adjustable stool
Tools required
Yes
Yes
Maximum load (kg)
120 (per seat)
120 (per seat)
Back height (mm)
770
770
Back width (mm)
2130
710 (per seat)
Seat height (mm)
460
460
Seat width (mm)
2130
710 (per seat)
Seat depth (mm)
710
710
Material
Fabric
Fabric
Frame
Black powdercoated metal
Black powdercoated metal
Finish
Charcoal grey seat with ash grey back and sides
Charcoal grey seat with ash grey back and sides
Seat foam
High density foam
High density foam
Back cushion
Ash grey, moss green, clay red
Ash grey, moss green, clay red
Just wrapped: Our latest fitouts.
They’ve just been really easy to deal with. So an initial enquiry, a conversation with them and to be honest the process has been quite seemless from beginning to end. We’ve continued to use them for over five years now.
Want the full JasonL experience?
Stop by a showroom and say hello.
Sydney City Showroom
Shop 3, 29-31 O'Riordan Street,
Alexandria, NSW 2015
Call: 1300 350 618 Alexandria, NSW 2015
Get Directions
.
- Choosing a selection results in a full page refresh.
- Opens in a new window.
- Australian Capital Territory, ACT
- New South Wales, NSW
- Northern Territory Government, NT
- Queensland, QLD
- South Australia, SA
- Tasmania, TAS
- Victoria, VIC
- Western Australia, WA

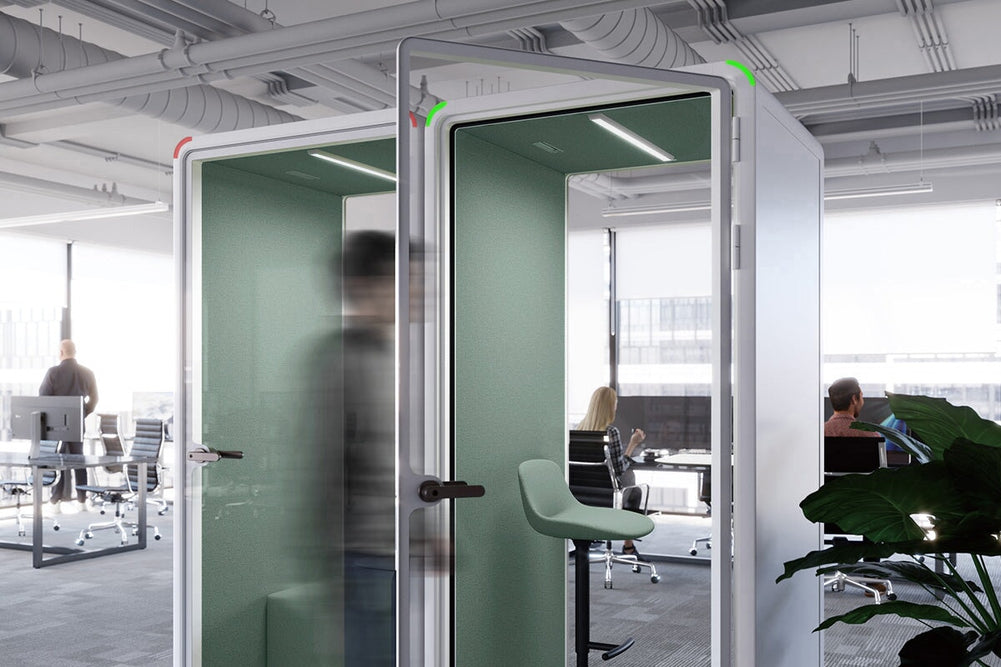

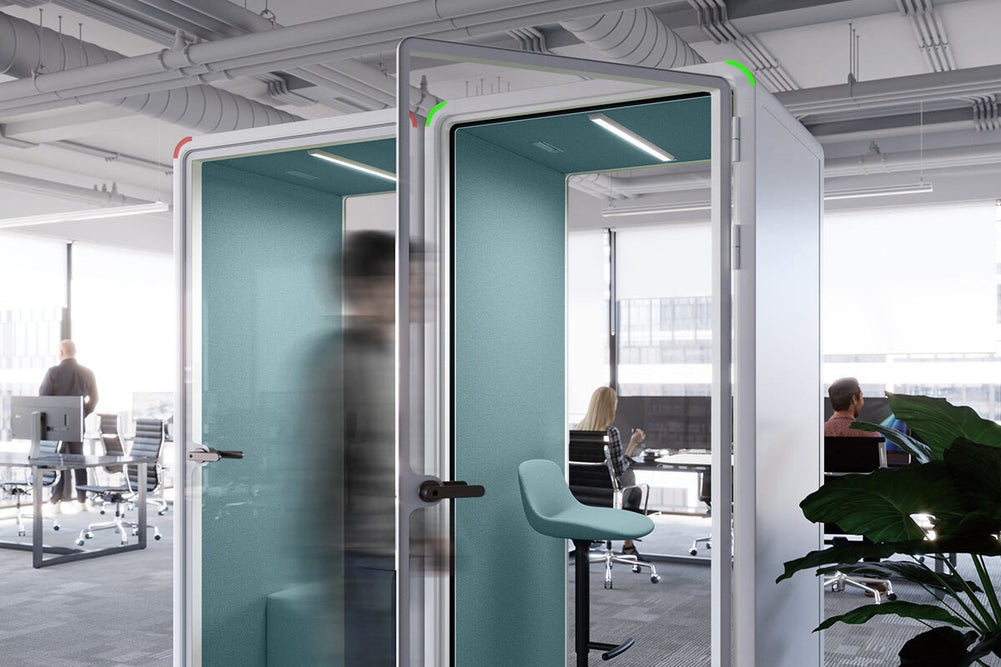

![Environmental image of Nest Phone Booth [Acoustic Panel with Fabric]](http://www.jasonl.com.au/cdn/shop/files/nest-phone-booth-echo-panel-with-fabric-817818.jpg?v=1744345899&width=910)
