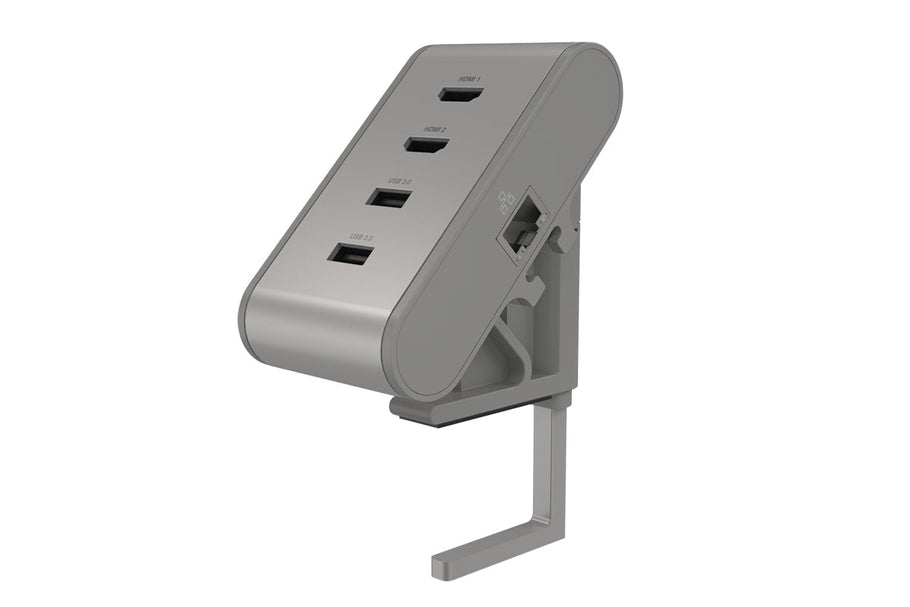

Good day, call me the Zgo Dual Display Type C Hub. I am an inexpensive dual video dock that includes 2 USB-A charging ports [2] HDMI video ports as well as an ethernet connection. I also come with a USB-C power cable that will allow you to charge me from an outlet. My size makes me a portable option and my easy-slide off and on option makes me easily mobile. I come in three colour variants - black, white and silver.
Brand
Zgo
Warranty (years)
1
Product weight (kg)
2
Downstream data ports
2x USB-3.1 Gen 1,
Combine 5V, 0.6A max (without PD pass through)
Combine 5V, 1.0A max (with PD pass through)
Clamp thickness (mm)
12-42
Usage
Data charging off your laptop
Upstream input to host
USB-C full feature, USB-3.1 Gen 1
Power delivery pass
through
USB-C, 60W max for notebook charging
LAN port
RJ45 Gigabit port (10M/100M /1000M)
Connection: Green and amber
Active: Green blinking
Downstream video
out ports
1x HDMI (3840x2160p max, 30Hz)
2x HDMI (1920x1080p max, 60Hz)
(Note: 2x HDMI cannot be displayed with Mac OS as displayport multistream is not supported)
System requirements
Windows 7, Windows 8, Windows 8.1, Windows 10 (32bit/64 bit),
Mac OS: V10.12.6
(Note: It is recommended to use Windows 10 as USB-C is native to Windows 10 system)
Temperature range
Operating: 0ÃÂðC to 35ÃÂðC
Non-operating storage: -20ÃÂðC to 60ÃÂðC
Relative humidity
Operating: 10% to 80% (non-condensing)
Non-operating storage: 5% to 90% (non-condensing)
Other info
Patented clamp design to maneuver between privacy panels
Support dual display
Compact and light weight clamp
Cost effective solution
1 Year Warranty
This range offer customizable configurations for single desk, multi-person workstations, boardroom setups, and more
This Product is guaranteed for a period of one year against faulty workmanship and/or raw materials for normal office use - i.e. 8 working hours per day. For more info please call 1300-527-665 or email
customerservice@jasonlcomau.
27868748
NSW
1. Pick-up at 2A/149 McCredie Road Smithfield, NSW 2164.
27868748
Availabilty:
true
Get your fitout booked today
Completed in under 10 days.
With dedicated project management from start to finish.
Full-service. Layout design,
delivery, and installation.
And showrooms nationwide for your convenience.
Combines well with
-
![Just Right Height Adjustable Corner (RHS) Workstation - Black Frame [1400L x 1450W] Jasonl dark oak](//www.jasonl.com.au/cdn/shop/products/just-right-height-adjustable-corner-workstation-black-frame-1400l-x-1450w-119645.jpg?v=1655816698&width=323)
Just Right Height Adjustable Corner (RHS) Workstation -...
Regular price $986Regular priceUnit price per -
Uplifting Actiflex II Triple Static Monitor Arms
Regular price $325Regular priceUnit price per -
![Productify Activity Based Partition Screen - Whiteboard/ Echo Felt Board [1800H x 900W] Jasonl fixed](//www.jasonl.com.au/cdn/shop/products/productify-activity-based-partition-screen-whiteboard-echo-felt-board-1800h-x-900w-831433.jpg?v=1736330499&width=323)
Productify Activity Based Partition Screen - Whiteboard/ Echo...
Regular price $642Regular priceUnit price per
![Just Right Height Adjustable Corner (RHS) Workstation - Black Frame [1400L x 1450W] Jasonl dark oak](http://www.jasonl.com.au/cdn/shop/products/just-right-height-adjustable-corner-workstation-black-frame-1400l-x-1450w-119645.jpg?v=1655816698&width=646)
![Productify Activity Based Partition Screen - Whiteboard/ Echo Felt Board [1800H x 900W] Jasonl fixed](http://www.jasonl.com.au/cdn/shop/products/productify-activity-based-partition-screen-whiteboard-echo-felt-board-1800h-x-900w-831433.jpg?v=1736330499&width=646)
Zgo Dual Display Type C Hub
$140 Delivered in 5-7 business days
Warranty (years)
1
5
3
Product weight (kg)
2
0.475, 0.625, 0.775
0.95, 1.25, 1.55
Downstream data ports
2x USB-3.1 Gen 1,
Combine 5V, 0.6A max (without PD pass through)
Combine 5V, 1.0A max (with PD pass through)
Combine 5V, 0.6A max (without PD pass through)
Combine 5V, 1.0A max (with PD pass through)
Clamp thickness (mm)
12-42
Usage
Data charging off your laptop
Managing data and power cabling all in one tray using one pair of brackets
Designated for a 2-person workstation where a T bracket will be used to hold each tray back to back
Upstream input to host
USB-C full feature, USB-3.1 Gen 1
Power delivery pass through
USB-C, 60W max for notebook charging
LAN port
RJ45 Gigabit port (10M/100M /1000M)
Connection: Green and amber
Active: Green blinking
Connection: Green and amber
Active: Green blinking
Downstream video out ports
1x HDMI (3840x2160p max, 30Hz)
2x HDMI (1920x1080p max, 60Hz)
(Note: 2x HDMI cannot be displayed with Mac OS as displayport multistream is not supported)
2x HDMI (1920x1080p max, 60Hz)
(Note: 2x HDMI cannot be displayed with Mac OS as displayport multistream is not supported)
System requirements
Windows 7, Windows 8, Windows 8.1, Windows 10 (32bit/64 bit), Mac OS: V10.12.6
(Note: It is recommended to use Windows 10 as USB-C is native to Windows 10 system)
(Note: It is recommended to use Windows 10 as USB-C is native to Windows 10 system)
Temperature range
Operating: 0°C to 35°C
Non-operating storage: -20°C to 60°C
Non-operating storage: -20°C to 60°C
Relative humidity
Operating: 10% to 80% (non-condensing)
Non-operating storage: 5% to 90% (non-condensing)
Non-operating storage: 5% to 90% (non-condensing)
Other info
Patented clamp design to maneuver between privacy panels
Support dual display
Compact and light weight clamp
Cost effective solution
Support dual display
Compact and light weight clamp
Cost effective solution
Assembly required
Yes
Yes
Tools required
Hand drill
Yes
Height (mm)
105 (from bottom of cable tray to top of bracket)
105 (from bottom of cable tray to top of bracket)
Height of tray (mm)
60
60
Width (mm)
950, 1250, 1550
950, 1250, 1550
Depth (mm)
65
125 (2 x 50 gap 20D)
Depth of tray (mm)
55
55
Maximum load (kg)
20
20
Cable tray width (mm)
950, 1250, 1550
950, 1250, 1550
Brackets
Hanging brackets included
Hanging brackets included
Desks
Single desks + runs (side by side desks)
Benches (back to back desks)-2 desks with 1 cable tray in the middle
Material
Metal tray
Metal tray
