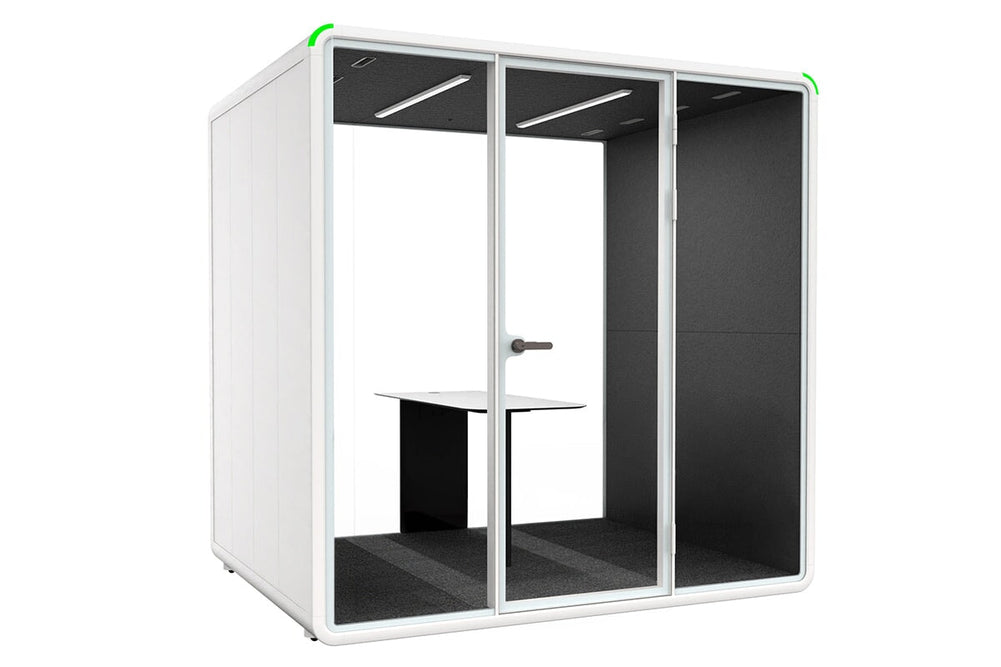

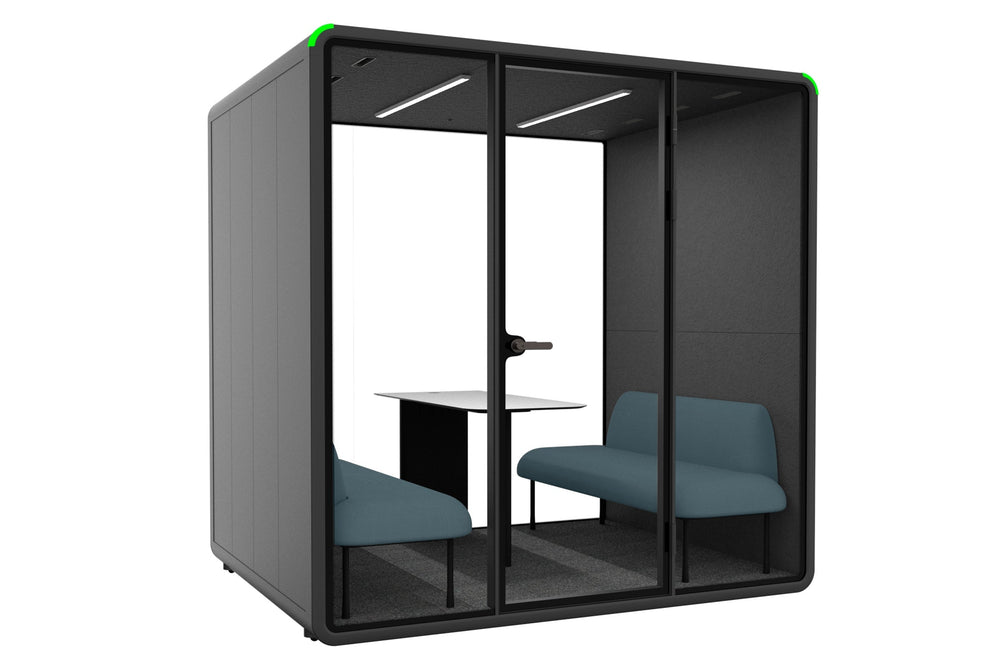

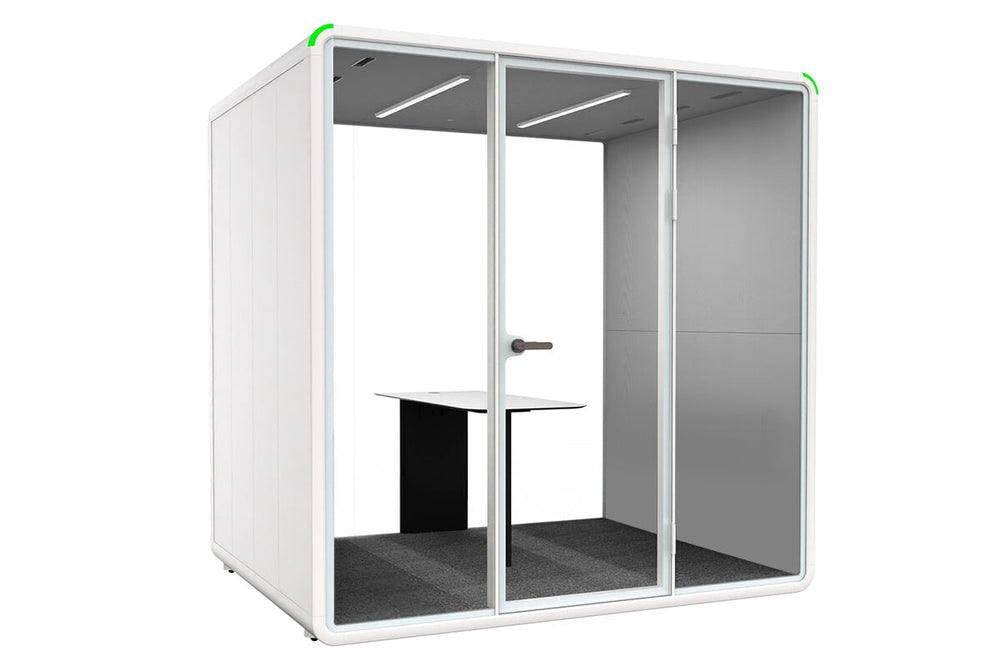

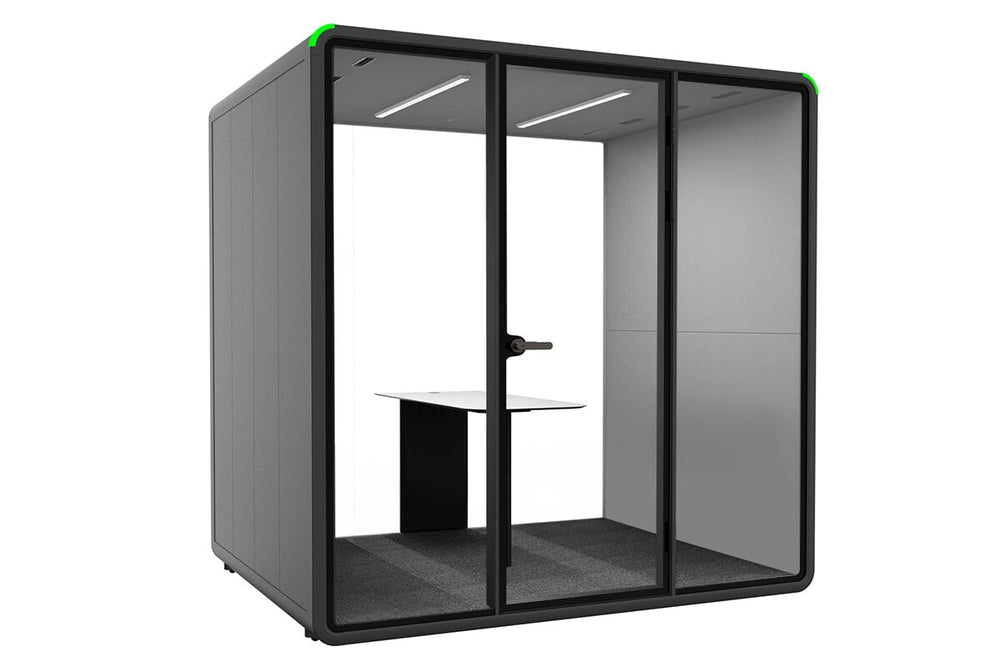

Nest 4 Person Meeting Booth - Full Glass Back Wall [Acoustic Panel]
- Description
- Spec sheet
- Dimensions
- Brochure
- Assembly instructions
- Warranty

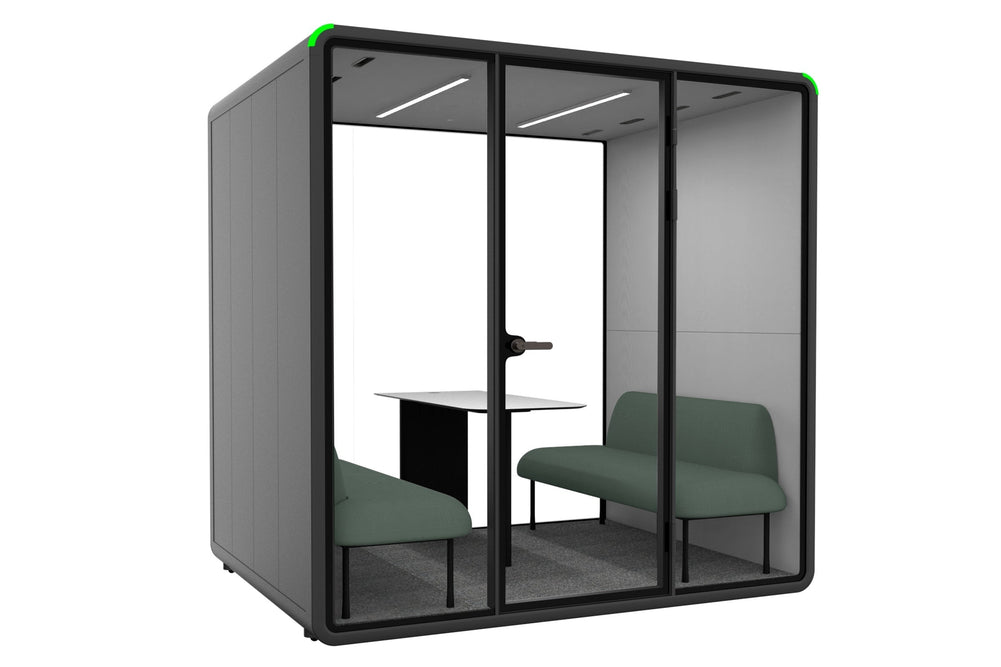

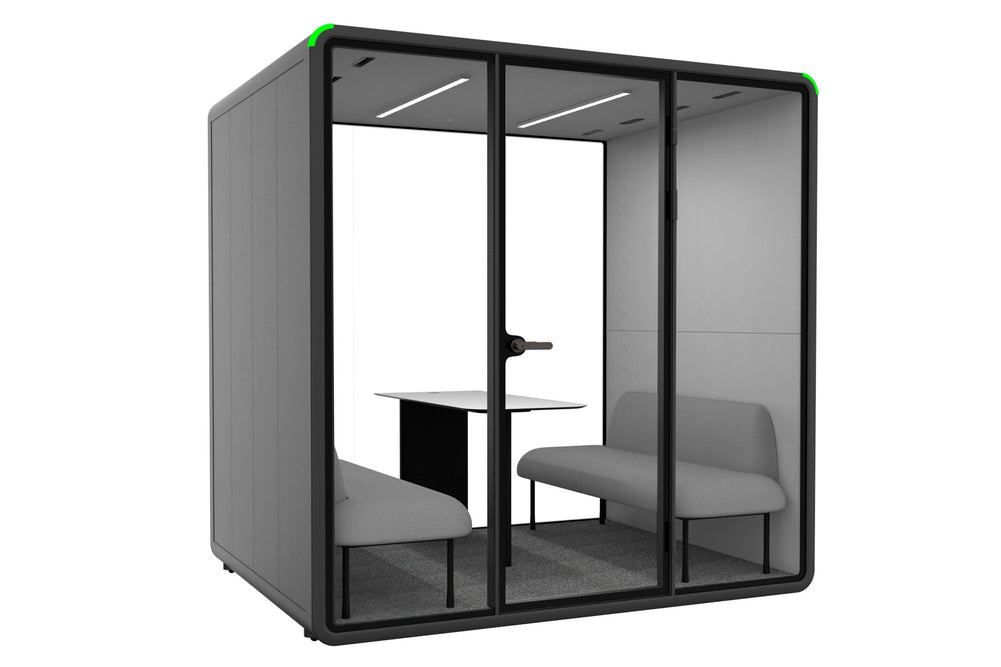

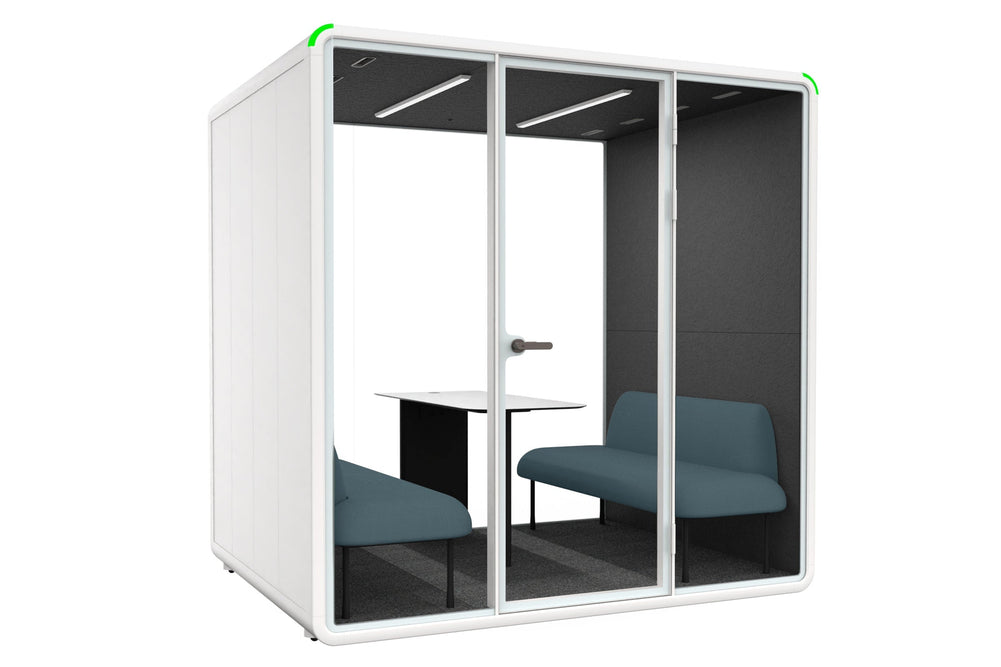

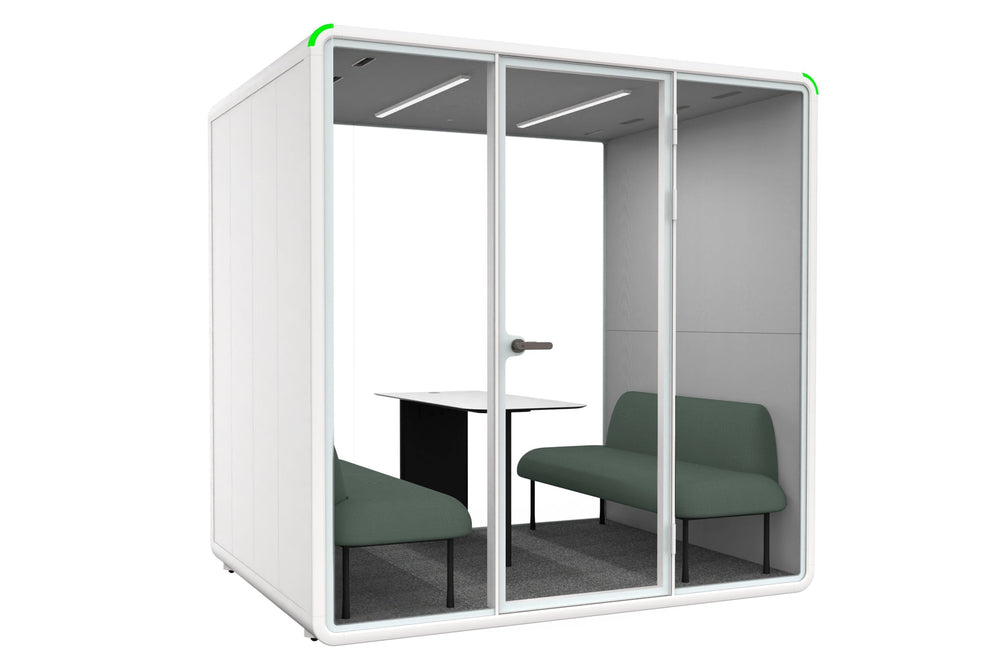

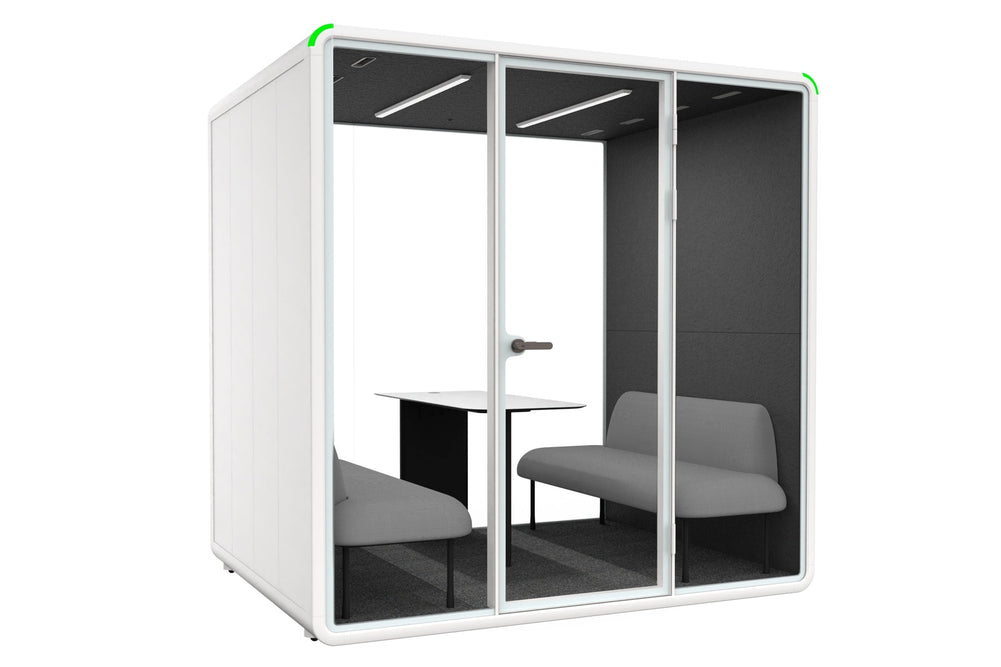

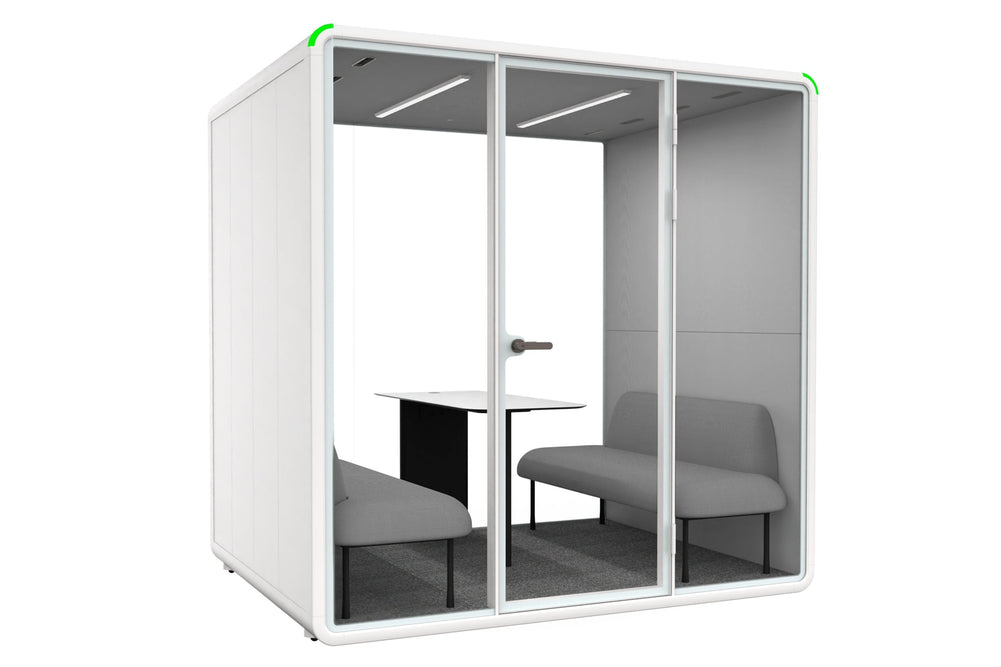

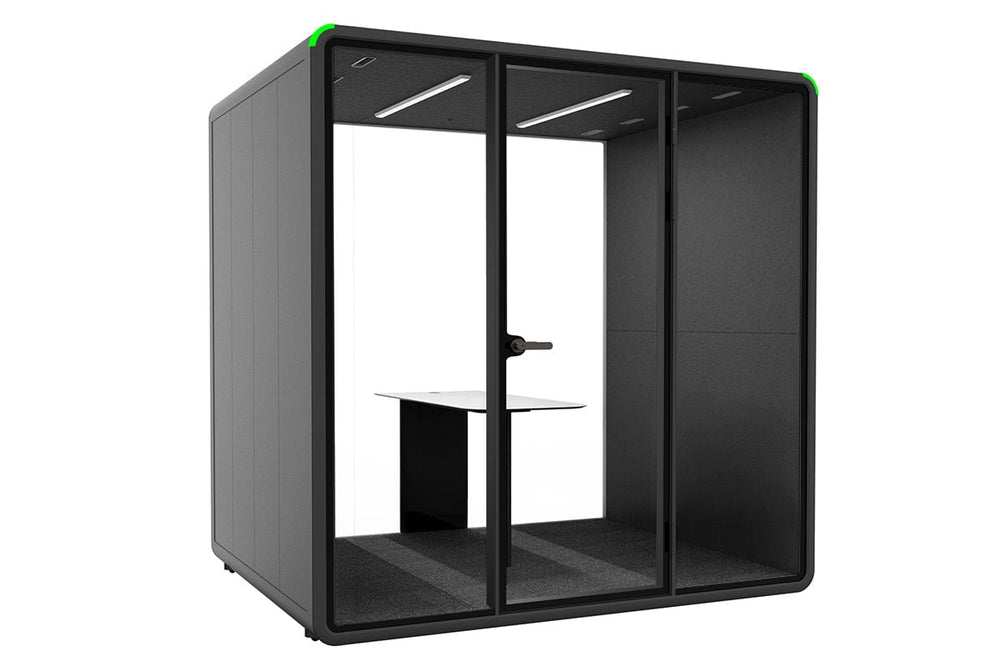

Hello! I'm Nest 4 Person Meeting Booth - Full Glass Back Wall [Acoustic Panel], a dynamic space for collaborative discussions. Tailor your surroundings by mixing wall paneling colors with internal furniture for a personalized touch. Enhance your comfort with an optional double-seater lounge, available in three vibrant colors, adds aesthetics, ensuring a stylish meeting environment. Equipped with dual GPO power outlets (USB and USB-C) and a motion sensor, I offer a convenient solution for powering up devices during meetings.
My dedicated wall panel allows easy TV mounting for video calls or impactful presentations. Experience customizable comfort with adjustable fan speed and LED lighting, including a motion sensor for the perfect ambiance. Beyond aesthetics, I excel in acoustic performance, providing impressive noise reduction. My efficient ventilation system ensures optimal air circulation for a productive meeting experience. Elevate your meetings with me, where style meets functionality.
My moveable design, with a concealed wheel mobility system, makes me portable and versatile. I am easy to install, dismantle, and move, providing you with the flexibility to create your ideal workspace anywhere. I am Green Guard certified, showcasing my commitment to safety, quality, and sustainability.
Please click here to view brochure
Brand
Jasonl
Assembly required
Yes (JasonL trained assemblers)
Height (mm)
2326 (2148 interior)
Width (mm)
2300 (2162 interior)
Depth (mm)
1785 (1745 interior)
Warranty (years)
5 (main frame) and 2 (electrical devices)
Normal wear and tear is not included
Product weight (kg)
650
Seats (people)
2 to 4
Main frame
Aviation aluminium frame and powdercoated matt
Interior panel
Acoustic Panel with fabric
Acoustic materials
12mm replaceable PET, flame retardent treatments
Panel
Acoustic Panel light grey, dark grey
Carpet & floor seal
Anti-static and stain resistant low loop pile carpet
Ventilation
Turbo fan*1 + Silentfan*2
24V 0-0.7A MAX16.8W
Power and data
Power: 110V-220V, 50-60Hz, 2 GPO
Socket and motion sensor (24V motion sensor)
220V/10V integrated socket Usb A + Usb C
Wall thickness (mm)
45
Door
Black lock with magnet
Door handle
Black
Glass panel
5+5 mm double-layer laminated glass
Edge with silk screen printing

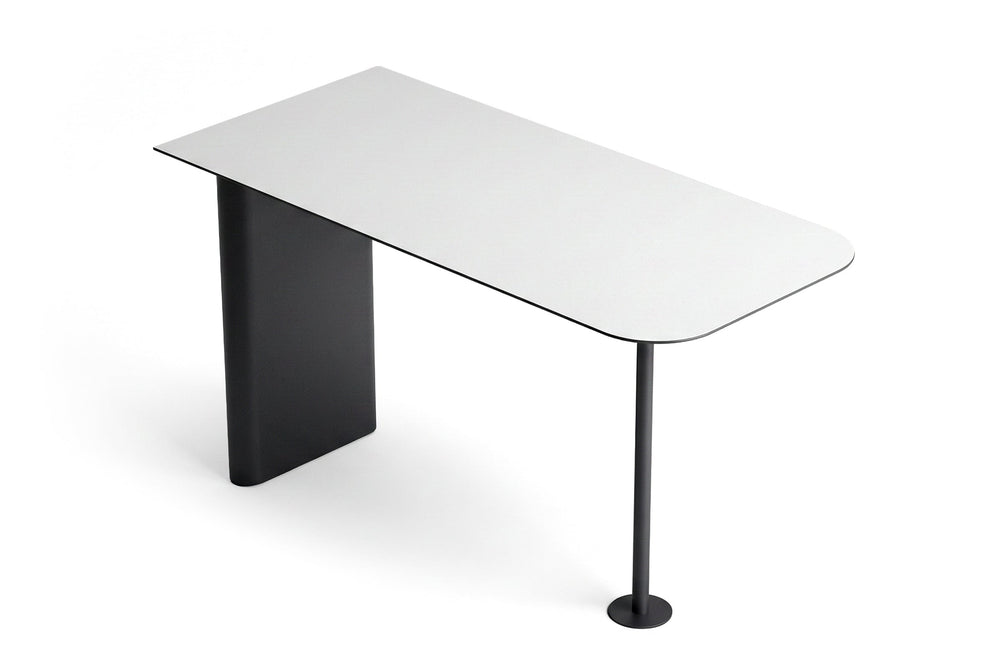

Furniture
Table top with 12mm compact white lamine top 1200mm x 630mm
Lightings
2*720 mm LED strap-shape light
Adjustable strength and temperature
Motion sensor
Included

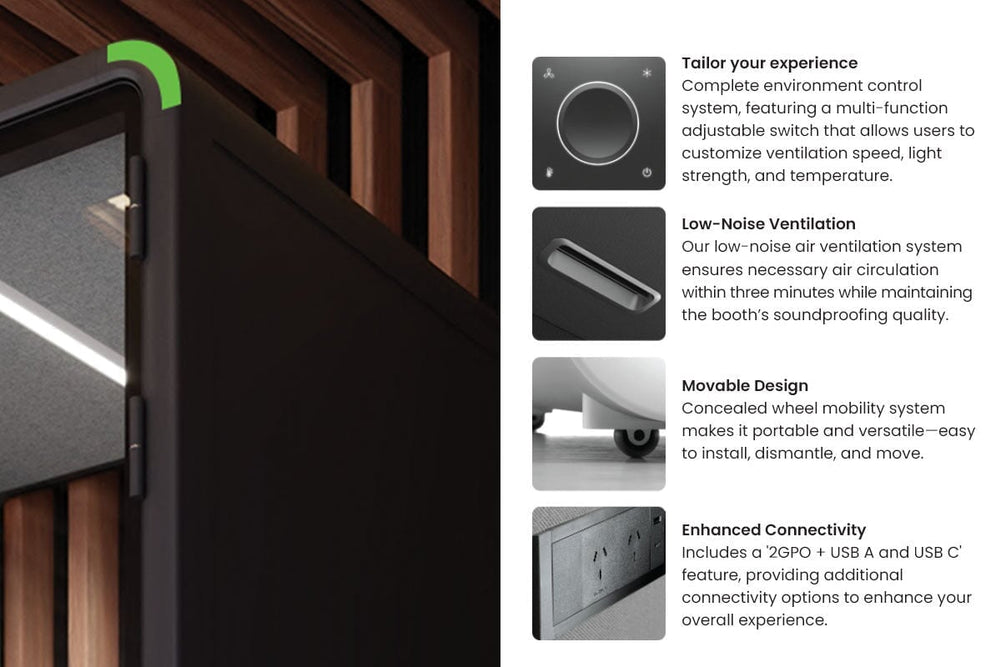

Smart adjustment panel
Adjustable fan speed, light brightness and light color

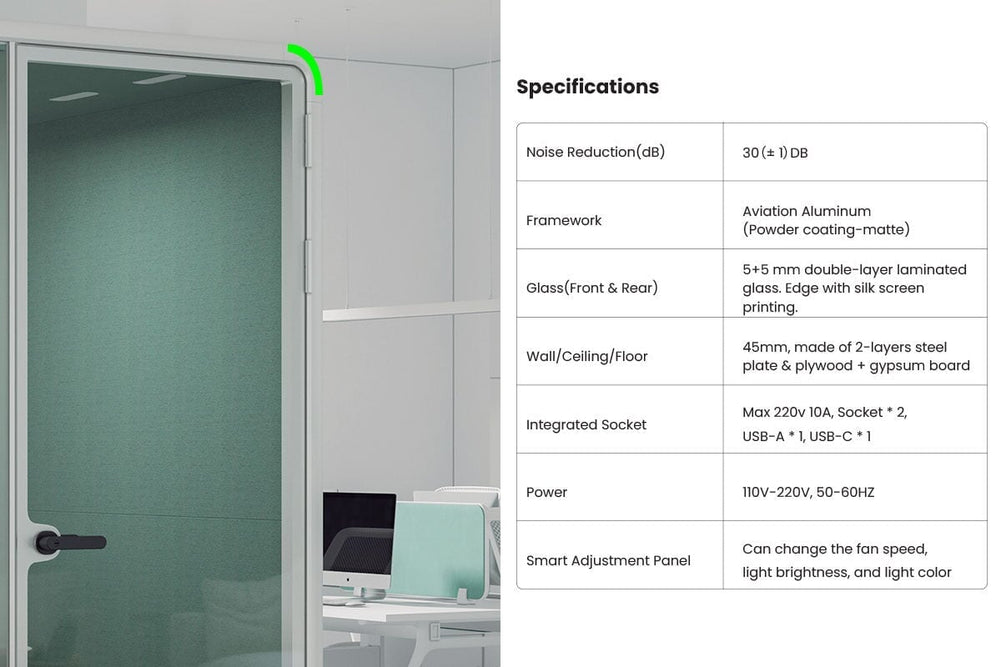

Acoustic sound transmission class (STC)
29 db
Noise reduction (DB)
30(ñ 1)DB
Airflow
306.432 m3/h
Power cable
3 pin plug

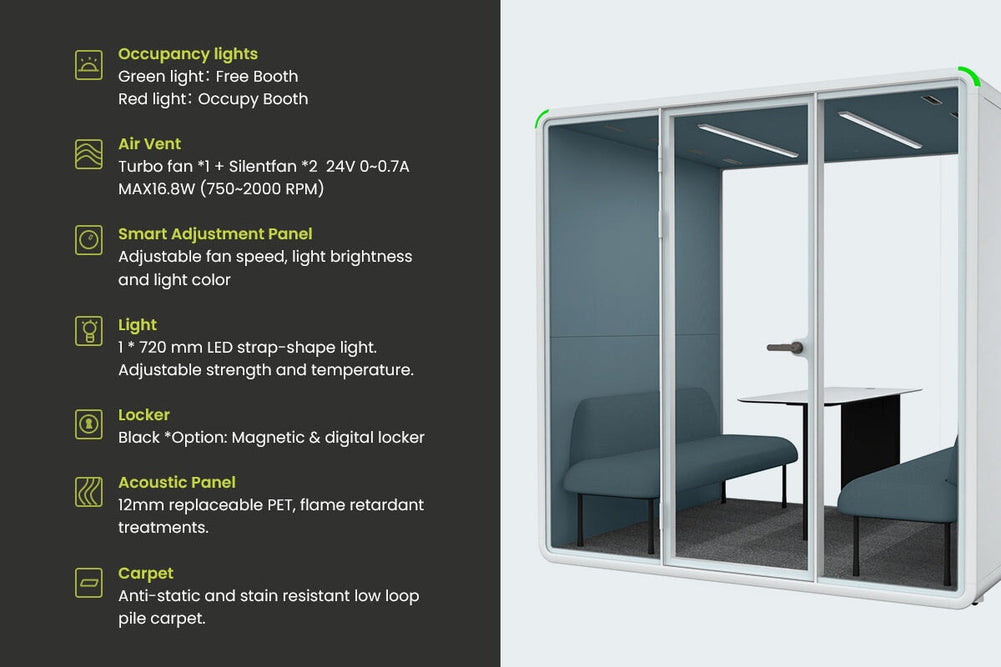

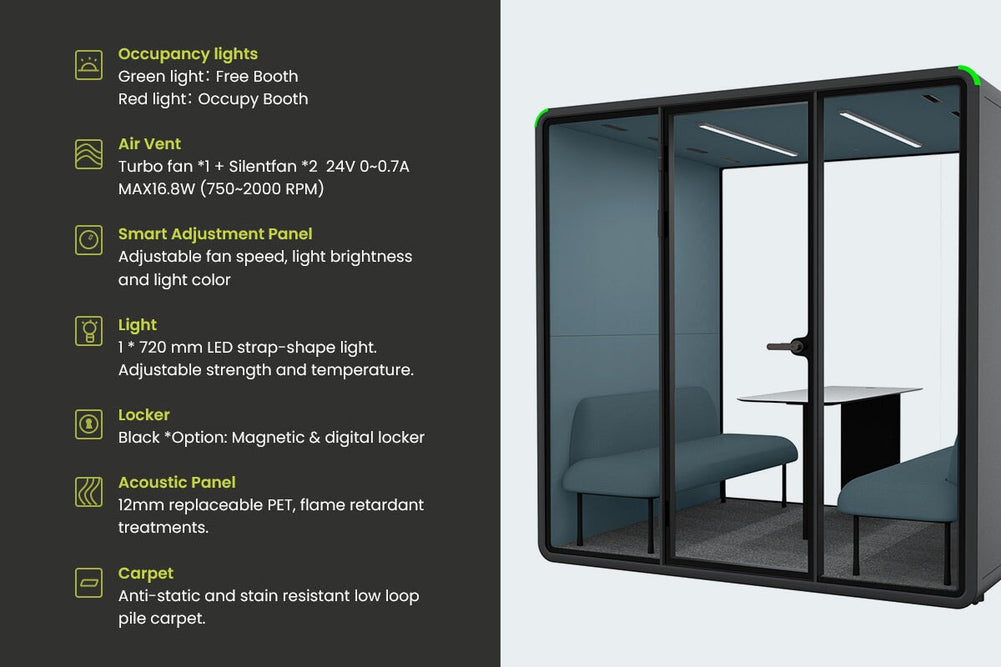

Occupancy indicator
Yes. This shows green when the booth is free and red when the booth is occupied
Use
Suitable for indoor
This product includes
Table
This product does not include
TV, lounge
Optional

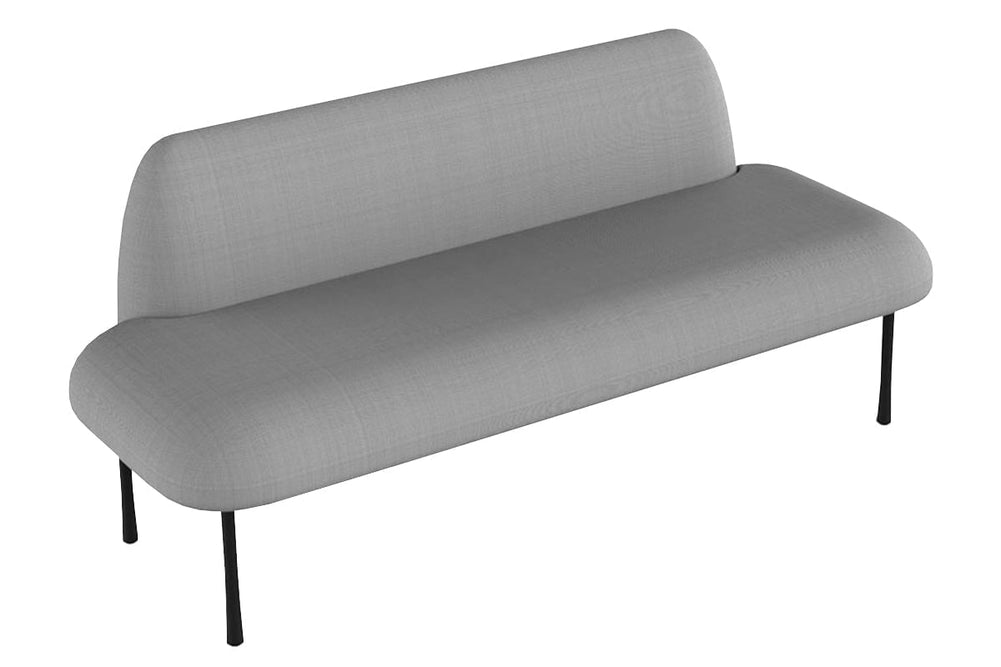

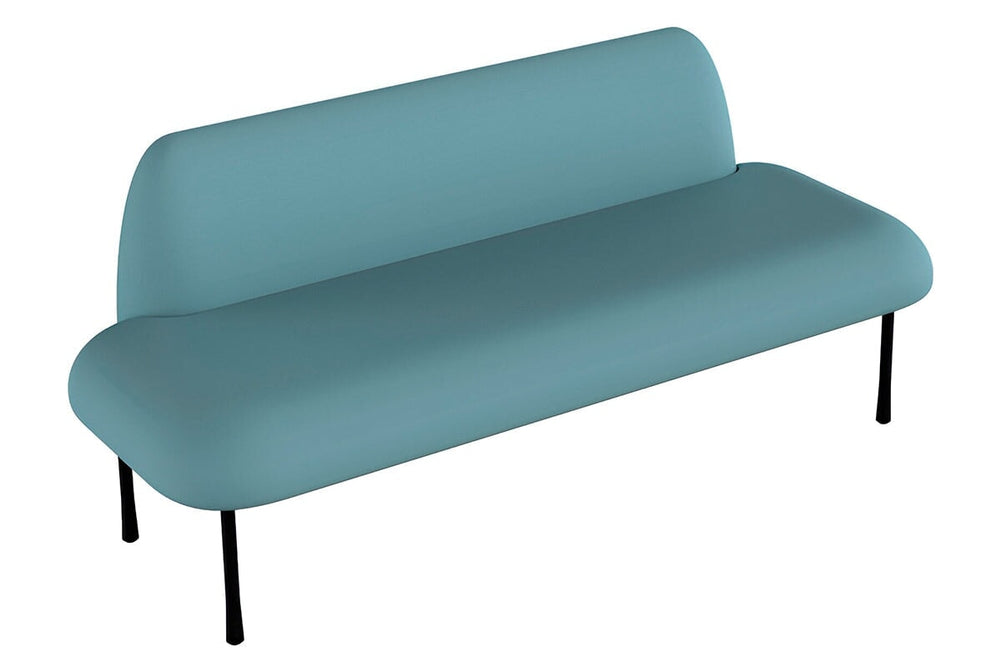

Lounge
Height (mm)
2326 (2148 interior)
Width (mm)
2300 (2162 interior)
Depth (mm)
1785 (1745 interior)
Wall thickness (mm)
45
A
2300 mm
B
1785 mm
C
2326 mm
Brochures
Assembly instructions
Notes
- Pre-drill pattern provided
- Allen key set provided
- 2 persons required for installation
5 Year Warranty
This range offer customizable configurations for single desk, multi-person workstations, boardroom setups, and more
This Product is guaranteed for a period of five year against faulty workmanship and/or raw materials for normal office use - i.e. 8 working hours per day. For more info please call 1300-527-665 or email
customerservice@jasonlcomau.
A
2300 mm
B
1785 mm
C
2326 mm
98769961248
27868748
WA
2. Pick-up at 11 King Edward Road, Osbourne Park, WA 6017
98769961248
Availabilty:
false
NSW
1. Pick-up at 2A/149 McCredie Road Smithfield, NSW 2164.
27868748
Availabilty:
true
Assembly required
Yes (JasonL trained assemblers)
Yes
Yes
Height (mm)
2326 (2148 interior)
1230
1230
Width (mm)
2300 (2162 interior)
2130
2190
Depth (mm)
1785 (1745 interior)
1450
2320
Warranty (years)
5 (main frame) and 2 (electrical devices)
Normal wear and tear is not included
Normal wear and tear is not included
5
5
Product weight (kg)
650
129
195
Seats (people)
2 to 4
6
6
Main frame
Aviation aluminium frame and powdercoated matt
Interior panel
Acoustic Panel with fabric
Acoustic materials
12mm replaceable PET, flame retardent treatments
Panel
Acoustic Panel light grey, dark grey
Carpet & floor seal
Anti-static and stain resistant low loop pile carpet
Ventilation
Turbo fan*1 + Silentfan*2
24V 0-0.7A MAX16.8W
24V 0-0.7A MAX16.8W
Power and data
Power: 110V-220V, 50-60Hz, 2 GPO
Socket and motion sensor (24V motion sensor)
220V/10V integrated socket Usb A + Usb C
Socket and motion sensor (24V motion sensor)
220V/10V integrated socket Usb A + Usb C
Wall thickness (mm)
45
Door
Black lock with magnet
Door handle
Black
Glass panel
5+5 mm double-layer laminated glass
Edge with silk screen printing
Edge with silk screen printing
Furniture
Table top with 12mm compact white lamine top 1200mm x 630mm
Lightings
2*720 mm LED strap-shape light
Adjustable strength and temperature
Adjustable strength and temperature
Motion sensor
Included
Smart adjustment panel
Adjustable fan speed, light brightness and light color
Acoustic sound transmission class (STC)
29 db
Noise reduction (DB)
30(± 1)DB
Airflow
306.432 m3/h
Power cable
3 pin plug
Occupancy indicator
Yes. This shows green when the booth is free and red when the booth is occupied
Use
Suitable for indoor
Suitable for indoor
Suitable for indoor
This product includes
Table
This product does not include
TV, lounge
Optional
Lounge
Tools required
Yes
Yes
Maximum load (kg)
120 (per seat)
120 (per seat)
Back height (mm)
770
770
Back width (mm)
2130
710 (per seat)
Seat height (mm)
460
460
Seat width (mm)
2130
710 (per seat)
Seat depth (mm)
710
710
Material
Fabric
Fabric
Frame
Black powdercoated metal
Black powdercoated metal
Finish
Charcoal grey seat with ash grey back
Charcoal grey seat with ash grey back and sides
Seat foam
High density foam
High density foam
Back cushion
Ash grey, moss green, clay red
Ash grey, moss green, clay red
