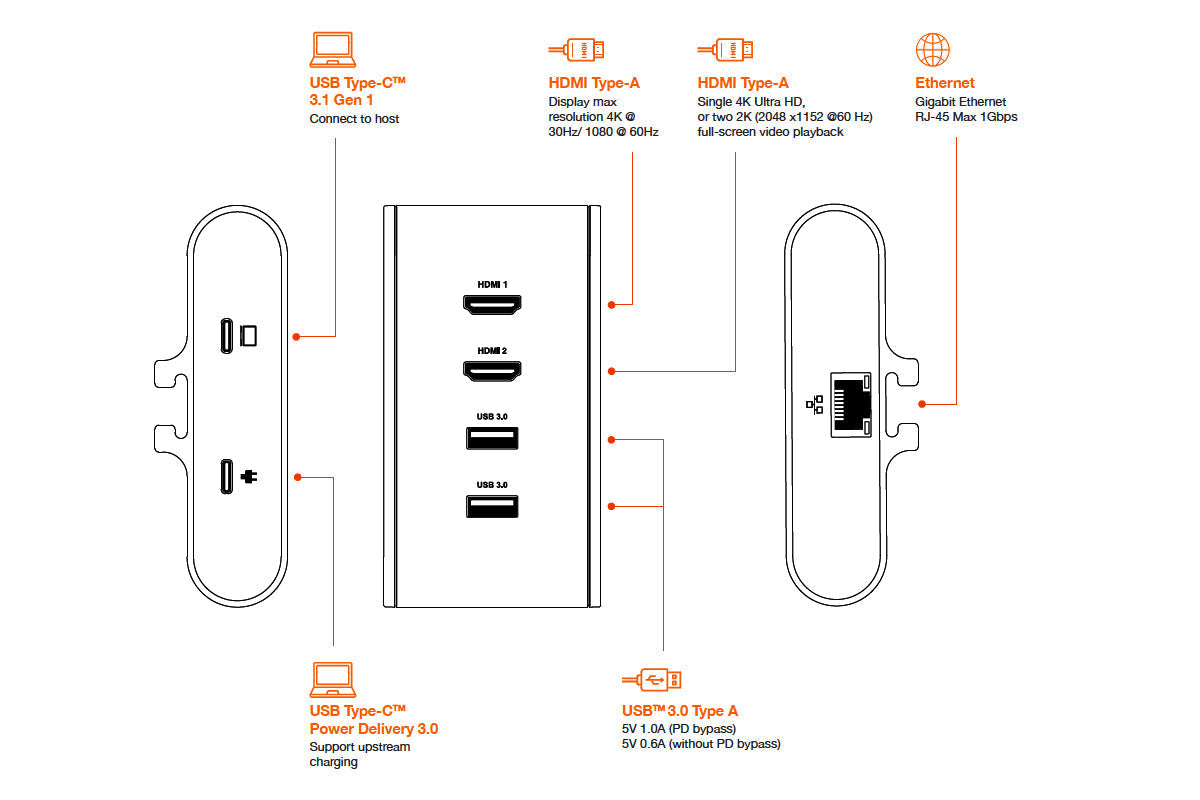

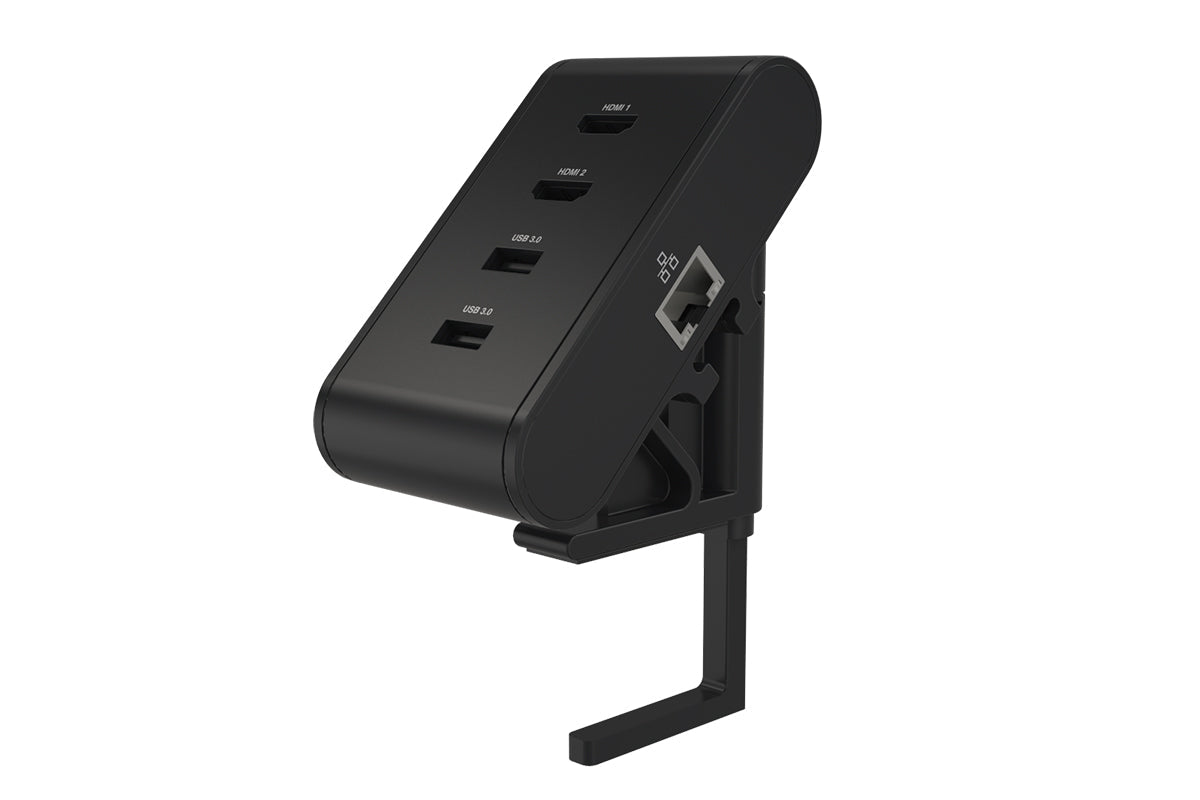

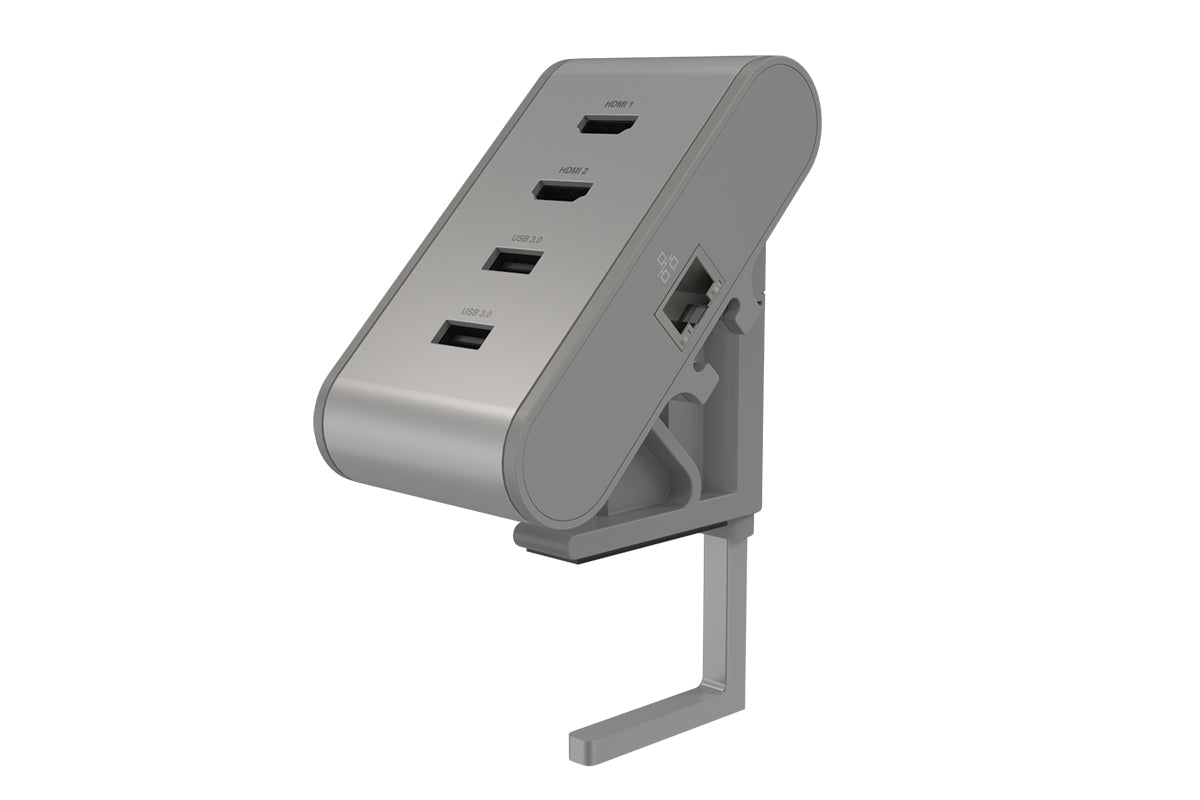

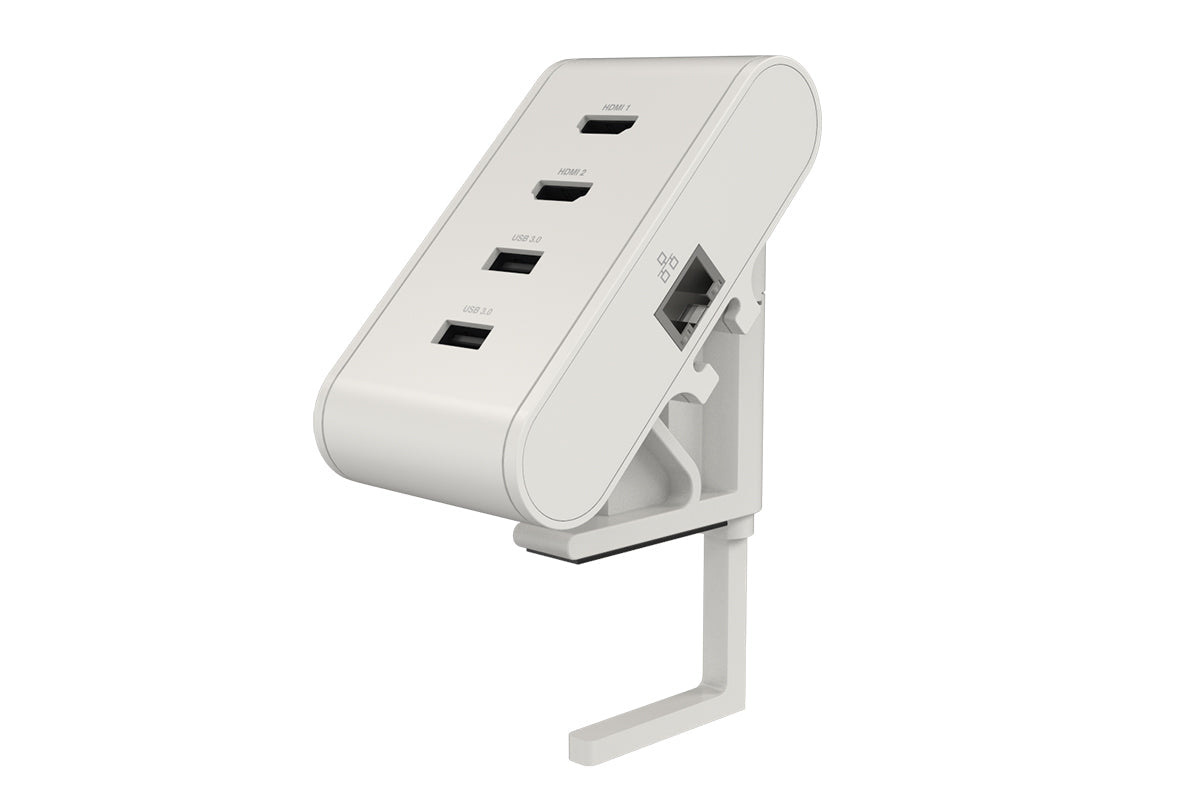

Good day, call me the Zgo Dual Display Type C Hub. I am an inexpensive dual video dock that includes 2 USB-A charging ports [2] HDMI video ports as well as an ethernet connection. I also come with a USB-C power cable that will allow you to charge me from an outlet. My size makes me a portable option and my easy-slide off and on option makes me easily mobile. I come in three colour variants - black, white and silver.
Warranty (years)
1
Product weight (kg)
2
Downstream data ports
2x USB-3.1 Gen 1,
Combine 5V, 0.6A max (without PD pass through)
Combine 5V, 1.0A max (with PD pass through)
Clamp thickness (mm)
12-42
Usage
Data charging off your laptop
Upstream input to host
USB-C full feature, USB-3.1 Gen 1
Power delivery pass
through
USB-C, 60W max for notebook charging
LAN port
RJ45 Gigabit port (10M/100M /1000M)
Connection: Green and amber
Active: Green blinking
Downstream video
out ports
1x HDMI (3840x2160p max, 30Hz)
2x HDMI (1920x1080p max, 60Hz)
(Note: 2x HDMI cannot be displayed with Mac OS as displayport multistream is not supported)
System requirements
Windows 7, Windows 8, Windows 8.1, Windows 10 (32bit/64 bit),
Mac OS: V10.12.6
(Note: It is recommended to use Windows 10 as USB-C is native to Windows 10 system)
Temperature range
Operating: 0ÃÂðC to 35ÃÂðC
Non-operating storage: -20ÃÂðC to 60ÃÂðC
Relative humidity
Operating: 10% to 80% (non-condensing)
Non-operating storage: 5% to 90% (non-condensing)
Other info
Patented clamp design to maneuver between privacy panels
Support dual display
Compact and light weight clamp
Cost effective solution
1 Year Warranty
This range offer customizable configurations for single desk, multi-person workstations, boardroom setups, and more
This Product is guaranteed for a period of one year against faulty workmanship and/or raw materials for normal office use - i.e. 8 working hours per day. For more info please call 1300-527-665 or email
customerservice@jasonlcomau.
98769961248
27868748
WA
2. Pick-up at 11 King Edward Road, Osbourne Park, WA 6017
98769961248
Availabilty:
false
NSW
1. Pick-up at 2A/149 McCredie Road Smithfield, NSW 2164.
27868748
Availabilty:
true
Get your fitout booked today
Completed in under 10 days.
With dedicated project management from start to finish.
Full-service. Layout design,
delivery, and installation.
And showrooms nationwide for your convenience.
